D7 Series 1 Network ports

The D7 Series 1 comes with two Ethernet ports:

PC:

Android:

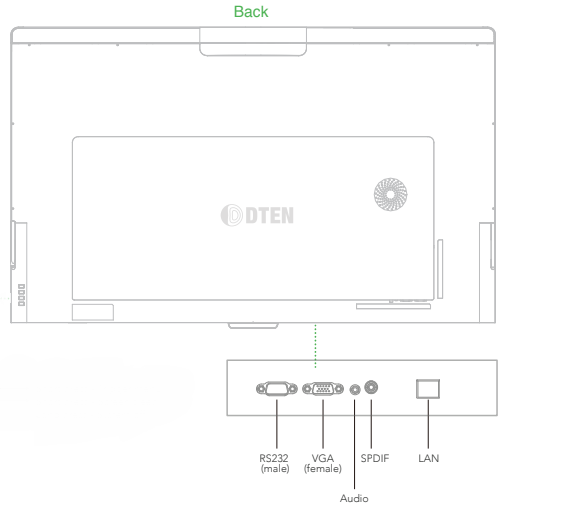

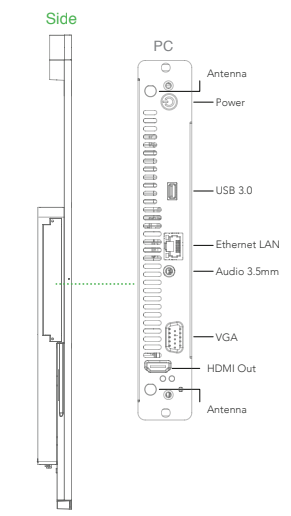

• If you would like to set up the static IP on the Ethernet port of the PC (located in between the WiFi Antennas), please select the Realtek PCIe GBE Family Controller. If you would like to set up the static IP on the Ethernet port of the Android (located underneath the unit), please select the Realtek USB GbE Family Controller. The WiFI Controller is named Intel(R) Dual Band Wireless-AC 3165.

If you have additional questions or need to contact DTEN Support, please refer to this DTEN Knowledge Base article for more details:  HERE.
